ECLIPSE

Flush Fit Flood Light 4" - White

Flood Lights
Key Features
Single Color - White
Single Color
1,500 Fixture Lumens
1,500
Fixture Lumens
ECLIPSE Collection
ECLIPSE
Collection
Description

Introducing the Flush Fit ECLIPSE 4" (10cm) Flood Light, which delivers a commanding 1,500 fixture lumens of pristine white light to brilliantly…

Features

ECLIPSE Collection
ECLIPSE
Collection
Single Color - White
Single Color
1,500 Fixture Lumens
1,500
Fixture Lumens
Warranty
Warranty

Product Description

Introducing the Flush Fit ECLIPSE 4" (10cm) Flood Light, which delivers a commanding 1,500 fixture lumens of pristine white light to brilliantly illuminate even the most challenging areas on board.

With its wide-reaching oval beams spanning from 70° to 90°, these lights ensure a bright and well-distributed illumination precisely where it's needed. Whether it's for decking, cockpit lighting, or enhancing your vessel's security, Lumishore's Flood Lights are the perfect choice for flush mounting on cabin tops, T-tops, arches, transoms, and radar pedestals.

Engineered to endure the harshest of marine environments, these lights boast an IP68 rating and are housed in a marine-grade, powder-coated aluminum casing. Even when not in active use, their finely crafted lighting units contribute to enhancing your boat's aesthetics.

As a standard feature, these lights offer dimmable control, providing you with flexibility and ease of operation. Illuminate your boat with the Flush Fit ECLIPSE Flood Light, designed to provide both functionality and style.

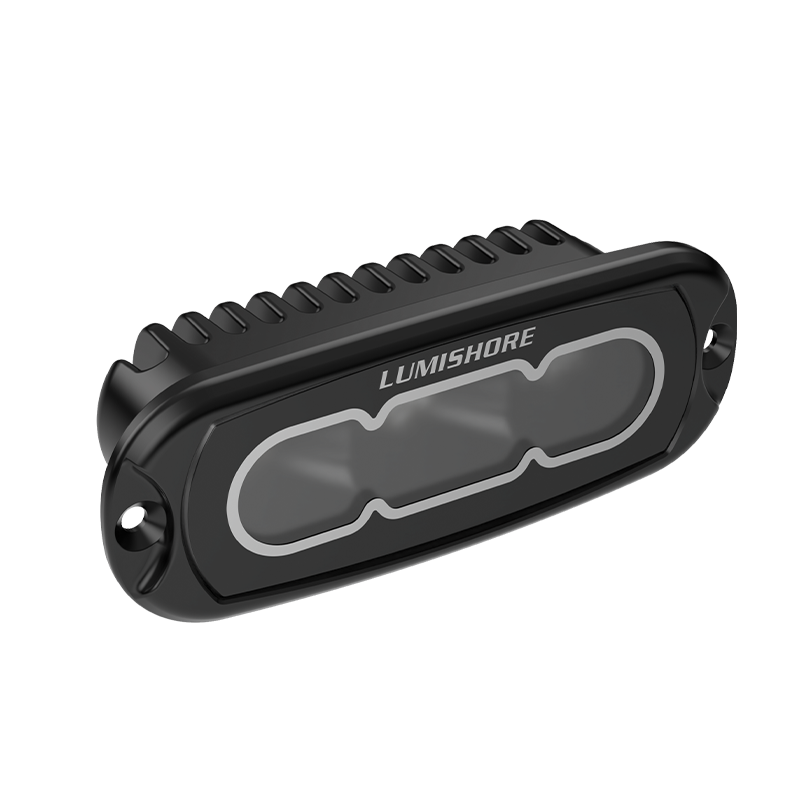

** Black housing option available **

Specifications

Available Colors:
White (5500 K)
Fixture Lumens (White):
1,500
Number & Type Of LED:
3 x 10W White LED
Control Options:
On/Off Switch (Third party supplied), ECLIPSE Command Center, EOS-LUX Command Center or Compatible MFD
Electrical Installation:
Simple 2 Wire Connection
Supply Voltage Range:
10.5—31 V DC
Max Current Draw 12/24V:
1.7 A/0.9 A
Beam Angle:
70° - 90° Oval Beam
Water Ingress Protection Rating:
IP68
Specifications

Downloads

The product specification sheet and installation manual can be downloaded below. If you require any further information please get in touch.
