TRX802
Fixture Lumens
Beam Angle
Retro-fit lights are designed for quick and easy replacement of existing HID, Plasma and older-generation LED lights without having to haul the…
Features
Fixture Lumens
Beam Angle
Warranty
Product Description

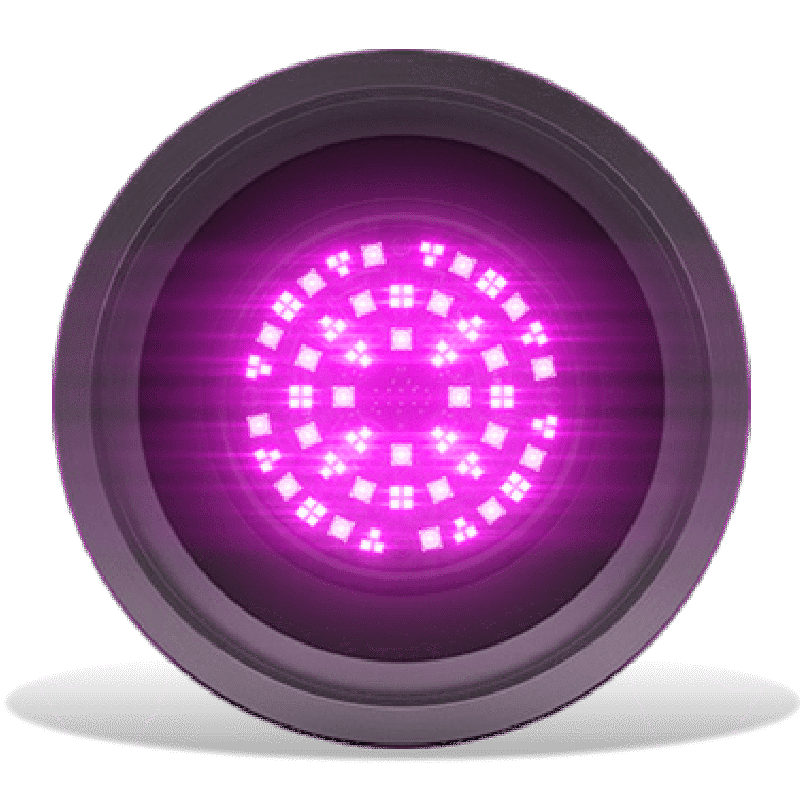

Retro-fit lights are designed for quick and easy replacement of existing HID, Plasma and older-generation LED lights without having to haul the vessel.
Simply screw the TRX802 LED light module into existing weld-in flanges and reap the benefits of Lumishore's high-performance underwater LED lighting, while eliminating the need for repeated changing-out of costly replacement bulbs and ballasts.
The TRX802 delivers full spectrum color change (RGBW), 8,000 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo effect around the vessel.
Our range of control options allow for system integration, wireless and touch screen control.
Specifications
- AVAILABLE LED COLORS:
- FULL COLOR CHANGE (RGBW)
- LUMENS:
- 18,000
- VERIFIED FIXTURE LUMENS (WHITE):
- 8,000
- # OF HIGH POWER LEDS:
- 104
- LED POWER - HICOB ARRAY:
- YES
- TYPICAL LED LIFE:
- 50,000+ HOURS
- BEAM ANGLE (DEGREES):
- 110°
- DRIVER:
- Multi-Channel External Driver
- SUPPLY VOLTAGE:
- 90-250 V AC (12/24 V DC available)
- MAX CURRENT DRAW:
- 0.6A
- HOUSING TYPE:
- 5083L BODY, 316L ADAPTOR RING
- USER CONTROL OPTIONS:
- STV2203-i Color Controller, STV2204-i Display, 3rd party DMX or wireless control capabilities
- LIGHTS SYNCHRONIZED:
- Y
- COLOR CYCLE w/SPEED ADJUST:
- Y
- COLOR SWEEP w/SPEED ADJUST:
- Y
- CUSTOMIZABLE FAVORITES:
- Y
- FIXED & RANDOM STROBES:
- Y
- PROGRAMMABLE SCENES:
- Y
- WI-FI CONTROL (APP):
- Y
- SOUND-TO-LIGHT:
- Y
- BRIGHTNESS ADJUST:
- Y
- AUTO LIGHT DISCOVERY & SETUP:
- Y
Downloads
The product specification sheet and installation manual can be downloaded below. If you require any further information please get in touch.
Video
Controllers & Accessories
-
Driver Options: EOS DC DMX Driver (28-0074)
-
PSU: AC/DC PSU (39-0014)
-
- Lumishore STV 2204-i Display & Lumi-Link Command Center (allowing wireless control capabilities)
- Lumishore STV 2203-i Colour Controller (allowing 3rd part DMX integration)
-
Light Extension Cables: Available
-
DMX Cable Extensions: Available
