ORA

TIX204

Interchangeable Thru-Hull

Key Features

Single Color

5,300
Fixture Lumens

60°
Beam Angle

Description

The TIX204 packs a powerful 5,300 fixture lumens into a compact, low profile interchangeable thru-hull. Available in single color Blue, White or…

Find a dealer

Features

Single Color

5,300
Fixture Lumens

60°
Beam Angle

Warranty

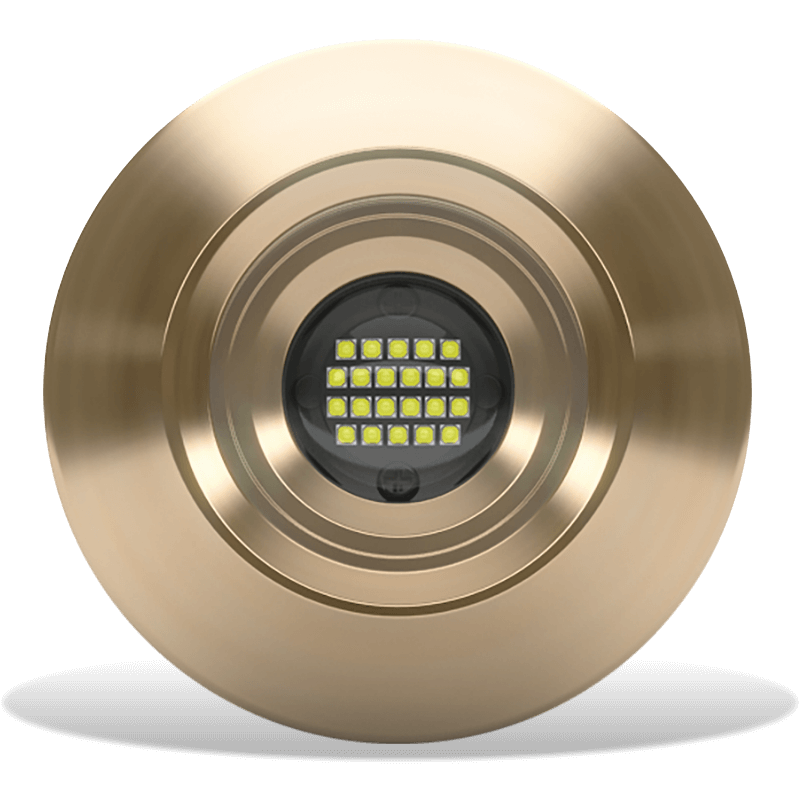

The TIX204 packs a powerful 5,300 fixture lumens into a compact, low profile interchangeable thru-hull.

Available in single color Blue, White or Green with a focused 60° beam angle.

TIX models feature an internal LED array and integrated driver for the ability to service from inside the hull and to simplify installation.

Easily controlled by a standard on/off switch.

Suitable for transom, side and bottom mounting.

AVAILABLE LED COLORS:: SINGLE COLOR (WHITE, BLUE, GREEN)
LUMENS:: 11,925
VERIFIED FIXTURE LUMENS (WHITE):: 5,300
NUMBER AND TYPE OF LED:: White - 11 x 10W High Power LEDs, Blue & Green – 22 x 3W High Power LED
LED POWER - HICOB ARRAY:: YES
TYPICAL LED LIFE:: 50,000+ HOURS
BEAM ANGLE (DEGREES):: 60°
DRIVER:: MULTI-CHANNEL INTERNAL DRIVER
SUPPLY VOLTAGE:: 12/24 V DC (AC OPTION AVAILABLE)
MAX CURRENT DRAW:: 4.0A/1.9A
HOUSING TYPE:: MARINE GRADE ALUMINUM BRONZE
USER CONTROL OPTIONS:: ON/OFF SWITCH
