TIX1604
Fixture Lumens
Beam Angle
This fully controllable color change TIX1604 underwater light delivers the greatest range of colors, 17,500 verified fixture lumens and an…
Features
Fixture Lumens
Beam Angle
Product Description

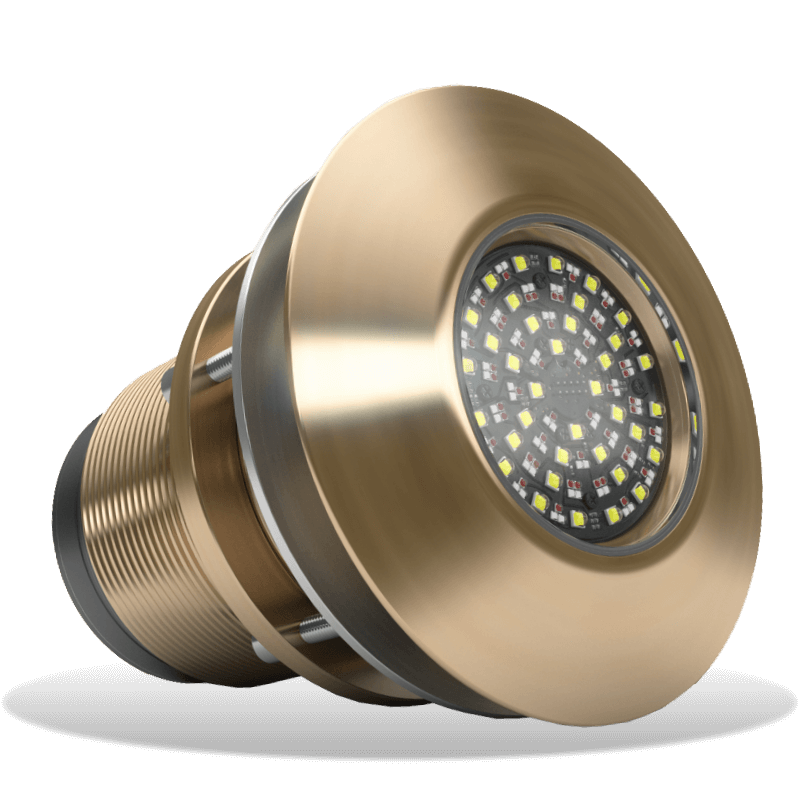

This fully controllable color change TIX1604 underwater light delivers the greatest range of colors, 17,500 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
Suitable for transom, side and bottom mounting.
TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Specifications
- AVAILABLE LED COLORS:
- EOS FULL COLOR CHANGE (RGBW)
- LUMENS:
- 39,375
- VERIFIED FIXTURE LUMENS (WHITE):
- 17,500
- NUMBER AND TYPE OF LED:
- White - 36 x 10W, Green - 36 x 3W, Blue - 36 x 3W, Red - 48 x 3W
- LED POWER - HICOB ARRAY:
- YES
- TYPICAL LED LIFE:
- 50,000+ HOURS
- BEAM ANGLE (DEGREES):
- 110°
- DRIVER:
- Multi-Channel External Driver
- SUPPLY VOLTAGE:
- 24 V DC (AC option available)
- MAX CURRENT DRAW:
- 6.5A
- HOUSING TYPE:
- MARINE GRADE ALUMINUM BRONZE
- USER CONTROL OPTIONS:
- From your MFD and/or optional Lumishore Display
- LIGHTS SYNCHRONIZED:
- Y
- COLOR CYCLE w/SPEED ADJUST:
- Y
- COLOR SWEEP w/SPEED ADJUST:
- Y
- CUSTOMIZABLE FAVORITES:
- Y
- FIXED & RANDOM STROBES:
- Y
- PROGRAMMABLE SCENES:
- Y
- WI-FI CONTROL (APP):
- Y
- SOUND-TO-LIGHT:
- Y
- BRIGHTNESS ADJUST:
- Y
- AUTO LIGHT DISCOVERY & SETUP:
- Y
Downloads
The product specification sheet and installation manual can be downloaded below. If you require any further information please get in touch.
Video
What It Comes With
- One (1) EOS TIX1604 Light with Built-in Driver
- Two (2) x 1M DMX cables (60-0403)
Controllers & Accessories
- EOS-LUX Command Center (60-0366)
-
Conversion cables and SD cards to compatible MFD’s (plug and play connect):
Garmin Conversion Cable (60-0372)
Simrad/B&G Conversion Cable (60-0373)
Furuno SD Card (60-0377) - Lumishore Display (60-0369)
-
DMX Extension Cables:
1m (60-0403)
5m (60-0404)
15m (60-0405) - Delrin Isolation Sleeve for Carbon Fibre and Metal Hulls (60-0212)
