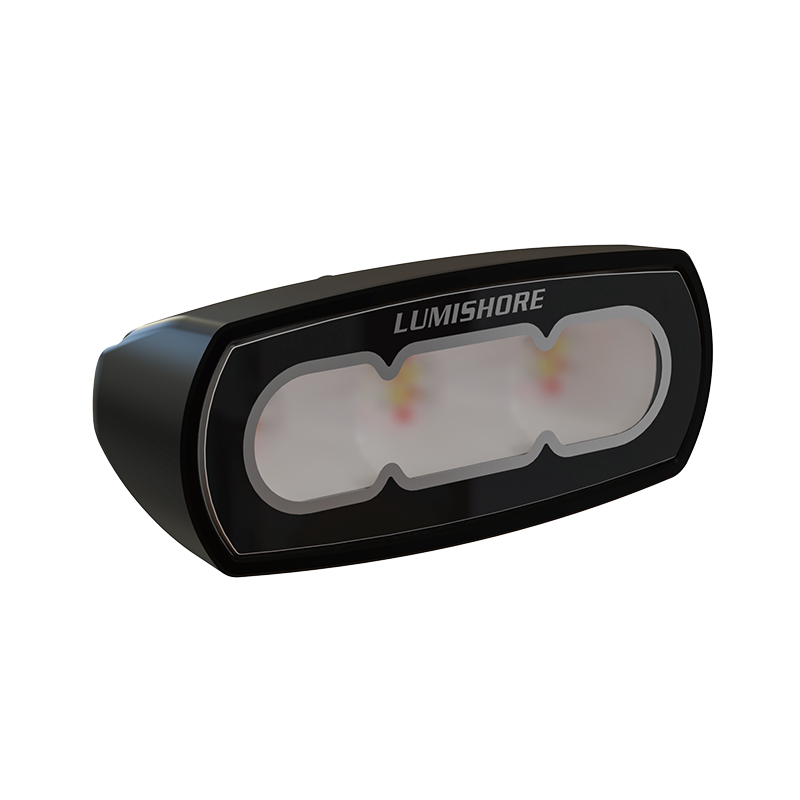

Flood Light 4"
CRGBW
Collection
Fixture Lumens
The world’s first CRGBW Flood Lights are designed to offer a high-intensity light source onboard. Ideal for deck, cockpit lighting, or for…
Features
Collection
CRGBW
Fixture Lumens
Beam Angle
Product Description
The world’s first CRGBW Flood Lights are designed to offer a high-intensity light source onboard. Ideal for deck, cockpit lighting, or for general security purposes.
Lumishore's 4" (10cm) Flood Light has an ultra-wide reaching (70° - 90°) oval beam angle for full coverage and custom diffusion optics for consistent and smooth beam colors. Generating a powerful 1,050 fixture lumens to illuminate your boat deck and beyond.
With its unique capability to combine warm and cold white (as well as red, green and blue) in a single lighting unit, LUX Flood Lights are unlike anything else on the market.
Lumishore’s low-profile articulating Flood Lights are perfect for exterior mounting on cabin tops, T-tops, arches, transoms and radar pedestals.
Designed to withstand the harshest marine environments, with a IP68 rating, and in marine-grade powder coated aluminium housing. The lighting units themselves are beautifully built, enhancing your boat’s fit-out, even when not in use.
Easily controllable by a switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.
Dimmable control as standard.
** Black housing option available **
Specifications
- Available colors:
- White Color Temperature Tunable (2700K to 6500K) and Full Spectrum RGB
- Lumens:
- 2,360
- Fixture Lumens:
- 1,050
- Number & Type Of LED:
- Warm White, Cold White, Red, Green and Blue (5 Channel)
- LED Power HICOB Array:
- Yes
- Typical LED Life:
- 50,000+ Hours
- Warranty:
- 2 Years
- User Control Options:
- EOS-LUX Command Center or Customer Supplied Momentary Switch
- Electrical Installation:
- Simple 3 Wire Connection (see installation manual)
- Housing Type:
- Powder Coated Aluminium Body with Frosted Lens
- Driver:
- Multi-Channel Internal
- Supply Voltage Range:
- 10.5—31 V DC
- Max Current Draw 12/24V:
- 1.7 A/0.9 A
- Beam Angle:
- 70° - 90° Oval Beam
- Water Ingress Protection Rating:
- IP68
Downloads
The product specification sheet and installation manual can be downloaded below. If you require any further information please get in touch.
What It Comes With
- One (1) LUX Flood Light 4"
- Stainless steel bracket and fasteners
Controllers & Accessories
- On/Off Switch (Third party supplied)
- EOS-LUX Command Center
-
Conversion cables and SD cards to compatible MFD’s (plug and play connect):
Garmin Conversion Cable (60-0372)
Simrad/B&G Conversion Cable (60-0372)
Furuno SD Card (60-0377) - LUX Light Control Module
- Optional Lumishore Display
