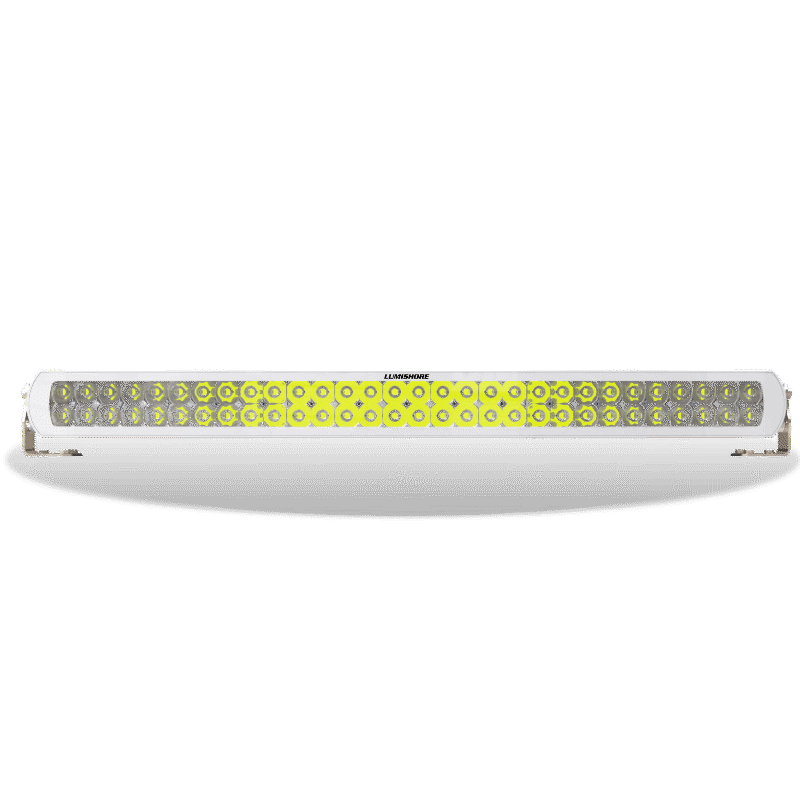

Light Bar 30" - White
Fixture Lumens
Beam Angle
Lumishore's new collection of Light Bars are designed to offer a high-intensity light source, covering a wide spread area. The 30'' (80cm) Light…
Features
Fixture Lumens
Beam Angle
Product Description
Lumishore's new collection of Light Bars are designed to offer a high-intensity light source, covering a wide spread area.
The 30'' (80cm) Light Bar delivers an incredible output (23,760 fixture lumens) of crisp, white light to illuminate your boat deck and beyond. Available in 20”, 30”, 40” and 50” models, allowing for versatile placement onboard.
Designed to withstand the harshest marine environments, completely water tight (IP68 compliant) and constructed with marine-grade powder coated aluminium. Suitable for T-Tops, helm roofs, fishing towers and bow platforms.
Controllable via an on/off switch, ECLIPSE Command Center
or EOS-LUX Command Center.
Specifications
- Available colors:
- White (5500 K)
- Lumens:
- 53,460
- Fixture Lumens:
- 23,760
- Number & Type Of LED:
- 60 x 10W White LED
- LED Power HICOB Array:
- Yes
- Typical LED Life:
- 50,000+ Hours
- User Control Options:
- On/Off Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command Center
- Electrical Installation:
- Simple 2 Wire Connection (3 Wires when used with EOS-LUX Command Center)
- Housing Type:
- Powder Coated Aluminium Body with Makrolon Lens
- Driver:
- Internal
- Supply Voltage Range:
- 10.5—31 V DC
- Max Current Draw 12/24V:
- 19.3 A/9.6 A
- Beam Angle:
- 9° - 32° Letterbox Beam (Vert - Horiz)
- Water Ingress Protection Rating:
- IP68
Downloads
The product specification sheet and installation manual can be downloaded below. If you require any further information please get in touch.
Video
What It Comes With
- One (1) Light Bar - Curved 30"
- Stainless steel bracket and fasteners
Controllers & Accessories
- On/Off Switch (Third party supplied)
- EOS-LUX Command Center (60-0366)
- ECLIPSE Command Center
-
Conversion cables to compatible MFD's (plug and play connect):
- Garmin (60-0372)
- Simrad / B&G (60-0373)
- Optional Lumishore Display (60-0369)
